The lift is delivered in ready-made elements with everything you need for installation.
The lift is available with a ready-made shaft and requires minimal building adaptation for installation, resulting in reduced building costs.
Unlike most lifts, C1 Pure has no machinery above or beneath the lift, everything fits inside the shaft. This makes C1 Pure very space-efficient and easy to install.
The ready-made lift concept can be installed in just a few days and requires minimal building preparation. All electrics are plug & play and the C1 Pure is available in versions prepared for 3x400, 3x230 and 1x230 VAC power supply.
| Cabin size – W x D mm | Cut out size – W x D mm – Single entry | Cut out size – W x D mm – Open-through |
|---|---|---|
| 900 x 950 mm | 1350 x 1240 mm | 1350 x 1410 mm |
| 900 x1200 mm | 1350 x 1490 mm | 1350 x 1660 mm |
| 900 x1200 mm | 1350 x 1490 mm | 1350 x 1660 mm |
| 900 x1200 mm | 1350 x 1490 mm | 1350 x 1660 mm |
| 900 x1200 mm | 1350 x 1490 mm | 1350 x 1660 mm |
| 900 x1200 mm | 1350 x 1490 mm | 1350 x 1660 mm |
| Cabin size – W x D mm | Cut out size – W x D mm – Single entry | Cut out size – W x D mm – Open-through |
|---|---|---|
| 900 x 950 mm | 1350 x 1240 mm | 1350 x 1410 mm |
| 900 x1200 mm | 1350 x 1490 mm | 1350 x 1660 mm |
| 900 x1200 mm | 1350 x 1490 mm | 1350 x 1660 mm |
| 900 x1200 mm | 1350 x 1490 mm | 1350 x 1660 mm |
| 900 x1200 mm | 1350 x 1490 mm | 1350 x 1660 mm |
| 900 x1200 mm | 1350 x 1490 mm | 1350 x 1660 mm |

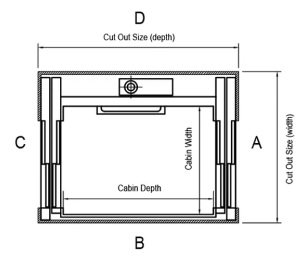

The cut out size refers to the minimal space required to install the lift. For cabin lifts designed to be placed in a masonry shaft, the cut out size indicates the minimal dimensions of the lift pit (width x depth) and the minimal internal dimensions of the masonry shaft (width x depth, mm). For cabin lifts designed to be installed with a ready-made shaft, the cut out size indicates the minimal dimensions of the lift pit (width x depth) and the minimal dimensions of the opening between floors (width x depth, mm).
